product information:
1, product model: 10mm external IC magic light strip one meter 60 lights 20 paragraphs / 1 meter 30 lights 10 paragraphs
2. Light source: SMD 5050 LED;
3, sheet: FPCB, 10mm wide
4, chip: Taiwan wafer chip, and other chips in Taiwan;
5, lamp bead model: external IC magic lamp beads;
6, gray level: 256 levels, (1 meter 20/10 pixels);
7, the number of LEDs: 30 / 60 lights / m, each of the three lights as a group, can be cut;
8, the angle of illumination: 180 °;
9, luminous color: can be adjusted by the controller, white, red, yellow, blue, green, etc.;
10, standard working voltage: DC 12V;
11, power: 18W ± 10% / m;

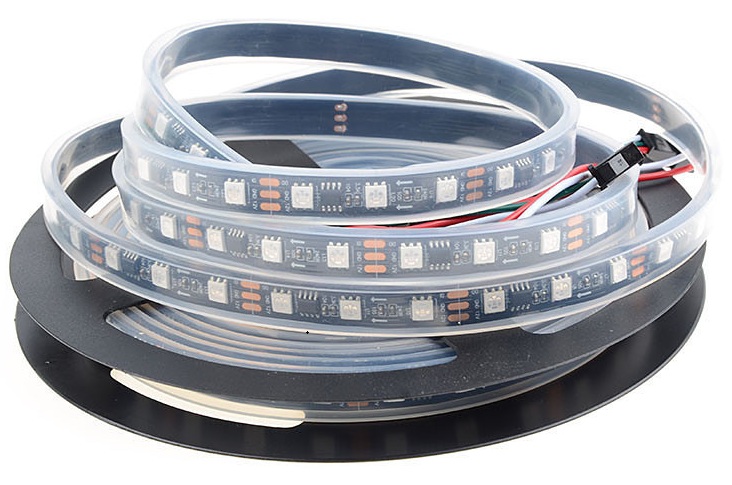

12, waterproof rating: not waterproof, epoxy (IP65), casing (IP67), casing solid glue (IP68);
13, the size of the FPCB board: width: 10mm,
14, FPCB color: white, black
15, weight: 0.15g / volume
16, packing: 50 rolls / box box size: 450 * 330 * 310 (mm), weight: 8.5KG;
